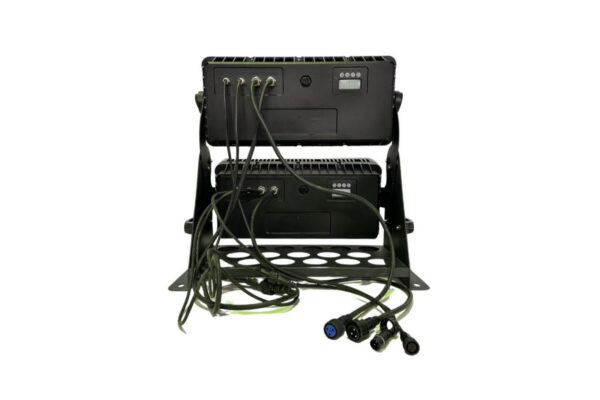

ALPHA SkyPulse 120*15W Waterproof

Technical Details:

• Input Voltage: AC90-245V, 50-60Hz
• Power Consumption: 1100W
• LED Source:
  • 120 x 15W RGBW 4-in-1 LEDs
  • 120 x 10W 4-in-1 LEDs
• LED Lifespan: 50,000 hours expected
• Lens Angle: 5°, 10°, 15°, 25°, 40°, 60° (optional)
• Dimmer: 0-100% 32-bit linear dimming
• Strobe Effect: 1-20 times per second
• Control Protocols: USITT DMX-512, RDM
• DMX Channels: 4, 6, or 8 channels
• Dimming Curves: Linear, Square, Inverse Square, S Curve
• Stand-Alone Modes:
  • Color Step
  • Color Shade
  • Auto
  • Slave
  • Static Color Setting
  • Auto Program Selection
• Housing: Aluminum, black finish
• Display: 2.4-inch TFT color display screen
• Ambient Temperature: -30°C to 50°C (-22°F to 122°F)
• Signal Connection: Seetronic IP65 XLR 5-pin or 3-pin In/Out
• Power Input: Seetronic PowerCON In/Out
• Display Adjustment: 180° rotation for flexible installation
• Heat Dissipation: Chassis heat dissipation + forced air cooling with low-noise IP-rated fan
• IP Rating: IP66 (Outdoor use)
• Size: 550 x 170 x 500 mm
• Net Weight: 31 kg
• Package Size: 680 x 620 x 600 mm
• Gross Weight: 33.3 kg

Key Features:

1. Powerful 120 x 15W RGBW 4-in-1 LEDs with an expected lifespan of 50,000 hours.
2. Multiple lens angle options (5° to 60°) for varied lighting effects.
3. Advanced dimming with 32-bit linear control for smooth light intensity adjustments.
4. 1-20Hz strobe effect for dynamic lighting displays.
5. Full DMX control with 4, 6, or 8 channels, and multiple dimming curves for versatile programming.
6. Stand-alone modes offer flexibility for color and program settings without a controller.
7. High-performance heat dissipation and low-noise fan ensure reliable operation.
8. IP66 rating for robust outdoor use in various weather conditions.
