ALPHA PhantomMist

Technical Details

Power Supply:

• Voltage: AC100-240V, 50/60Hz

Smoke Output:

• Heating Element: Built-in heating system
• Warm-up Time: Displays “- UP -” during heating process
• Smoke Output Volume: Adjustable via DMX (P100 setting)
• Fluid Compatibility: High-quality smoke fluid only (low-quality fluids may damage the machine)

Control:

• Control Modes: DMX512, Remote Control, Auto Mode
• DMX Channels: 7CH
  • CH1: Smoke output control (0-255)
  • CH2: Lighting ON/OFF control (0-255)
  • CH3: Red light brightness (0-255)
  • CH4: Green light brightness (0-255)
  • CH5: Blue light brightness (0-255)
  • CH6: Light gradient speed (0-255)
  • CH7: Flashing light speed (0-255)

Features:

• Integrated LED Lighting: RGB (Red, Green, Blue) for enhanced smoke effects
• Fog Output Customization: Adjustable intensity via DMX or manual settings
• Preset Timing Options: Adjustable interval and duration settings
• User-Friendly Interface: LED display with navigation buttons (MENU, UP, DOWN, ENTER)

Working Environment:

• Operating Temperature: Max 40°C
• Cooling System: Built-in fan cooling
• Indoor Use Only: Not waterproof, avoid exposure to moisture

IP Grade:

• IP20 (Indoor use only)

Key Features:

1. High-performance fog machine with adjustable smoke output and integrated LED lighting
2. Supports DMX512 control with 7-channel functionality for synchronized stage effects

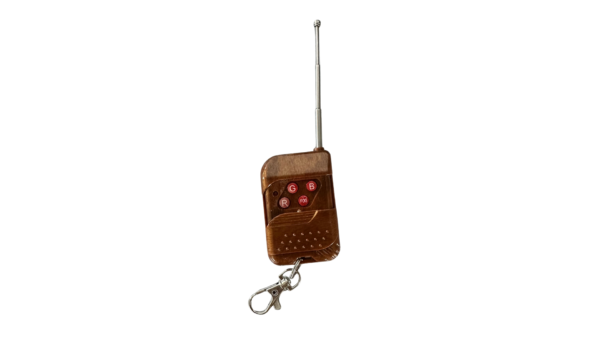

3. Remote control operation for easy activation during events
4. Fast heating system for consistent fog production
5. Ideal for stage performances, concerts, nightclubs, and special events
