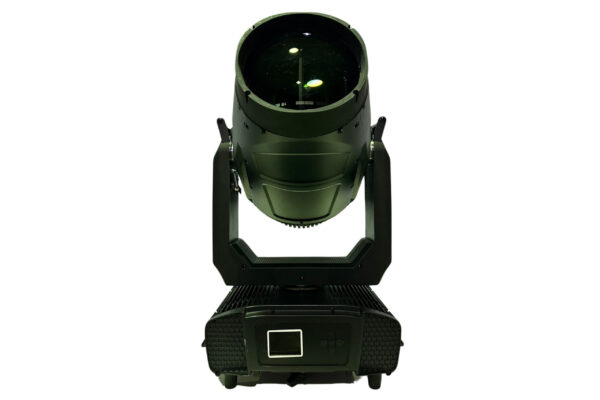

ALPHA LuxeBeam 480W

Technical Details:

• Input Voltage: AC90-245V, 50-60Hz
• Power Consumption: 610W
• Light Source: 480W laser
• Color Temperature:
  1. 480W/360W: 7000K
  2. 260W: 8000K
• Beam Angle: 0.6° (almost parallel light beam)
• Lifetime: >12,000 hours
• Illuminance:
  1. 480W: 560,000 lux @ 20m
• Optical Lens: Imported optical lens, light exit diameter of 200mm
• Movement:
  1. Horizontal: 540°
  2. Vertical: 270°
• Waterproof Rating: IP66 (IP67 optional)
• Control Modes: DMX512, Auto
• DMX Channels: 12/15 channels
• Color Wheel: 14 dichroic filters + open
• Gobo Wheel: 1 fixed gobo wheel, 17 patterns
• Dimming: 0-100%, smooth dimming without flicker
• Strobe: Independent strobe, adjustable from 0.5-20 times per second
• Prisms: 5 prisms
• Focusing: Electric linear focusing
• Light Output Angle: 0.6°
• Display: Button control interface
• Appearance: Constructed from high-strength aviation magnesium alloy, offering resistance to high temperatures, fire, aging, wear, and impact, while being lightweight.
• Installation: Can be mounted upside down or side-hung
• Net Weight: 28 kg
• Gross Weight: 31 kg
• Fixture Size: 74.539.334.3 cm
• Carton Size: 434585 cm, 31 kg per carton
• Flight Case Size: 975297 cm, 72 kg per case (2 pcs per case)

Key Features:

1. High-power 480W laser with an ultra-narrow 0.6° beam, delivering intense, focused lighting.
2. 14 dichroic filters for a wide color range and 17 gobo patterns for dynamic visual effects.
3. Smooth dimming (0-100%) with no flicker, and independent strobe adjustable up to 20 times per second.
4. Durable construction with aviation magnesium alloy, providing resistance to extreme conditions.
5. Waterproof rating of IP66, with optional IP67, making it suitable for outdoor use.
